Finite geometries

Here we list a few examples of manipulating finite geometries. First we import the necessary modules.

import numpy as np

import qse

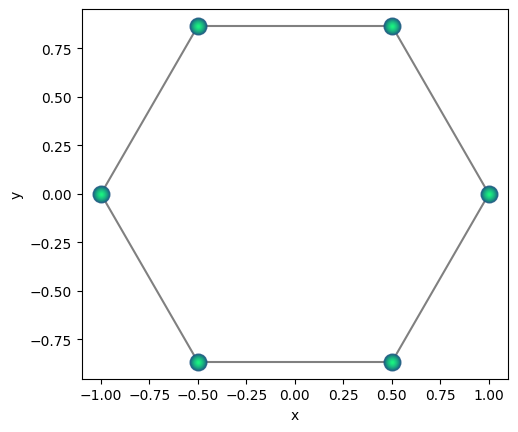

Now we generate a hexagon.

qhex = qse.lattices.ring(1.0, 6)
qhex.draw(radius=1)

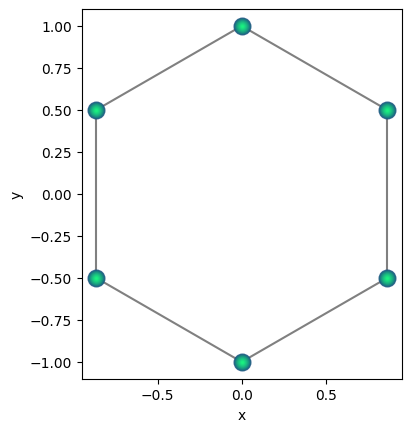

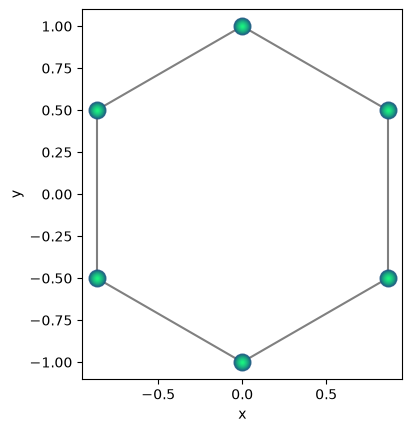

Now lets rotate it by 30 degrees.

qhex.rotate(30)
qhex.draw(radius=1)
print(qhex.positions.round(6))

[[ 0.866025  0.5     ]
 [ 0.        1.      ]
 [-0.866025  0.5     ]
 [-0.866025 -0.5     ]
 [-0.       -1.      ]
 [ 0.866025 -0.5     ]]

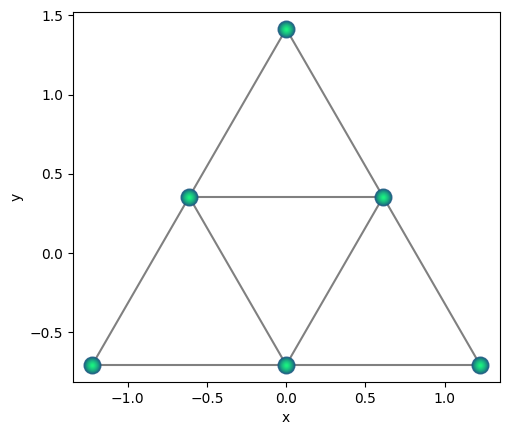

Now we scale the positions of qubits. All the points are defined around origin, and we scale the alternating points inversely.

scale = np.sqrt(2)
qhex.positions[::2] *= 1 / scale
qhex.positions[1::2] *= scale
qhex.draw(radius=2)

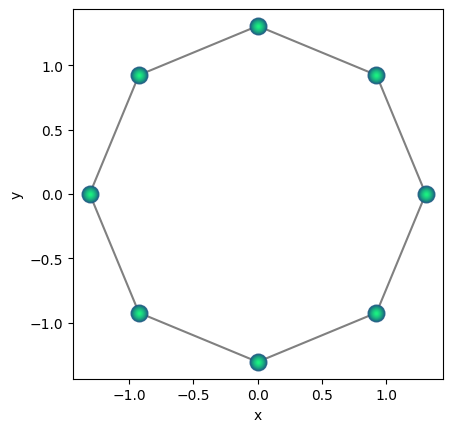

Let’s try another example with octagon geometry.

qoct = qse.lattices.ring(1.0, 8)
qoct.draw(radius=1)

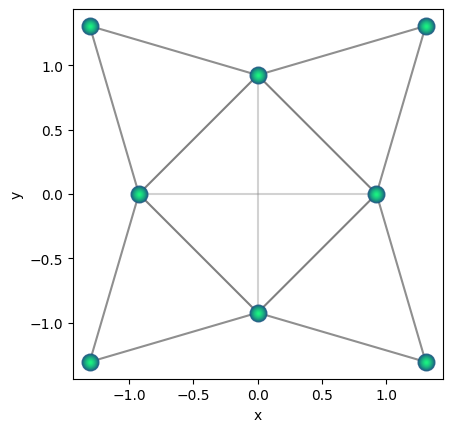

Here also we scale inversely the alternating points.

scale = np.sqrt(2)
qoct.positions[::2] *= 1 / scale
qoct.positions[1::2] *= scale
qoct.draw(radius=2)

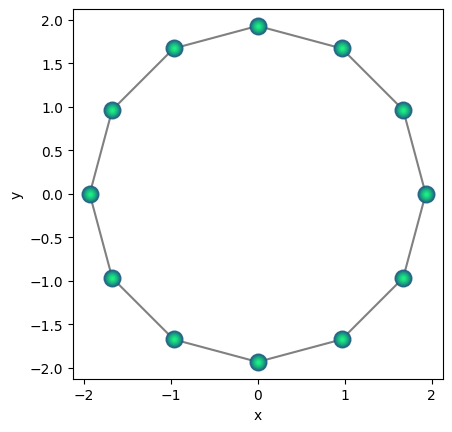

Here is a combined example with 12 points.

q12 = qse.lattices.ring(1.0, 12)
q12.draw(radius=1)
scale = np.sqrt(2)
q12.positions[::2] *= 1 / scale
q12.positions[1::2] *= scale
q12.draw(radius=2)

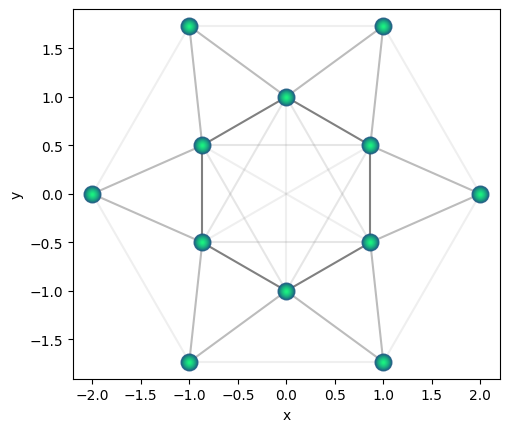

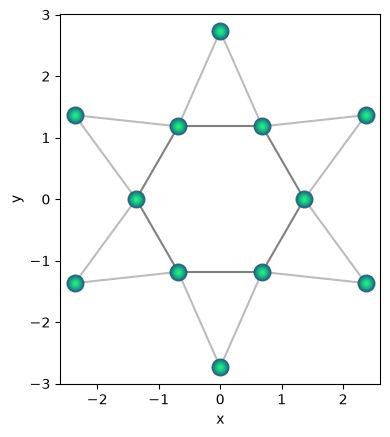

We can also create structures by adding different Qbits objects. See below

npoints = 6
qq = qse.Qbits()
qq.remove_dim("z")
for i, r in enumerate(np.linspace(1, 2, 2)):
    q = qse.lattices.ring(r, npoints)
    q.rotate(180 * (i + 1) / npoints)
    qq += q
qq.draw(radius=2)
qq.nqbits

12
