QNLP.proc.VectorSpaceModel.VectorSpaceModel Class Reference

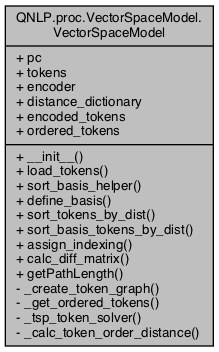

Collaboration diagram for QNLP.proc.VectorSpaceModel.VectorSpaceModel:

Public Member Functions
def	__init__ (self, corpus_path="", mode=0, stop_words=True, encoder=enc.gray.GrayEncoder(), use_spacy=False)
def	load_tokens (self, corpus_path, mode=0, stop_words=True, use_spacy=False)
def	sort_basis_helper (self, token_type, num_elems)
def	define_basis (self, num_basis={"verbs":8, "nouns":8})
def	sort_tokens_by_dist (self, tokens_type, graph_type=nx.DiGraph, dist_metric=lambda x, np.abs(x[:, np.newaxis] - y) y)
def	sort_basis_tokens_by_dist (self, tokens_type, graph_type=nx.DiGraph, dist_metric=lambda x, np.abs(x[:, np.newaxis] - y) y, num_basis=16, ham_cycle=True)
def	assign_indexing (self, token_type)
def	calc_diff_matrix (self)
def	getPathLength (self, token_type)

Data Fields
	pc
	tokens
	encoder
	distance_dictionary
	encoded_tokens
	ordered_tokens

Private Member Functions
def	_create_token_graph (self, token_dist_pairs, graph_type=nx.DiGraph)
def	_get_ordered_tokens (self, nx.DiGraph token_graph, ham_cycle=True)
def	_tsp_token_solver (self, nx.DiGraph token_graph)
def	_calc_token_order_distance (self, token_order_list, token_type)

Detailed Description

Use vector space model of meaning to determine relative order of tokens in basis (see disco papers).
Plan:

-   1. Populate set of tokens of type t in corpus; label as T; O(n)
-   2. Choose n top most occurring tokens from T, and define as basis elements of type t; 2 <= n <= |T|; O(n)
-   3. Find relative (pairwise) distances between these tokens, and define as metric; n(n-1)/2 -> O(n^2)
-   4. Sort tokens by distance metric; O(n*log(n))
-   5. Assign tokens integer ID using Gray code mapping of sorted index; O(n)

After the aboves steps the elements are readily available for encoding using the respective ID. Tokens that appear
relatively close together will be closer in the sorted list, and as a result have a smaller number of bit flips of difference
which can be used in the Hamming distance calculation later for similarity of meanings.

Definition at line 108 of file VectorSpaceModel.py.

Constructor & Destructor Documentation

__init__()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.__init__	(		self,
			corpus_path = "",
			mode = 0,
			stop_words = True,
			encoder = enc.gray.GrayEncoder(),
			use_spacy = False
	)

Definition at line 123 of file VectorSpaceModel.py.

    def __init__(self, corpus_path="", mode=0, stop_words=True, encoder=enc.gray.GrayEncoder(), use_spacy=False):
        self.pc = VSM_pc()
        self.tokens = self.load_tokens(corpus_path, mode, stop_words, use_spacy)
        self.encoder = encoder
        self.distance_dictionary = {}
        self.encoded_tokens = {}
        self.ordered_tokens = {}

Member Function Documentation

_calc_token_order_distance()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel._calc_token_order_distance (   self,   token_order_list,   token_type  )

private

Definition at line 345 of file VectorSpaceModel.py.

    def _calc_token_order_distance(self, token_order_list, token_type):
        sum_total = []
        for idx in range(1, len(token_order_list)):
            # May be ordered either way
            v0 = self.distance_dictionary.get(token_type).get( ( token_order_list[idx-1], token_order_list[idx] ) )
            v1 = self.distance_dictionary.get(token_type).get( ( token_order_list[idx], token_order_list[idx-1] ) )
            if v0 == None:
                sum_total.append( np.min(v1) )
            else:
                sum_total.append( np.min(v0) )

        return (np.sum(sum_total), sum_total)

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.distance_dictionary.

_create_token_graph()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel._create_token_graph (   self,   token_dist_pairs,   graph_type = nx.DiGraph  )

private

Creates graph using the (basis) tokens as nodes, and the pairwise
distances between them as weighted edges. Used to determine optimal
ordering of token adjacency for later encoding.

Definition at line 239 of file VectorSpaceModel.py.

    def _create_token_graph(self, token_dist_pairs, graph_type=nx.DiGraph):
        """
        Creates graph using the (basis) tokens as nodes, and the pairwise
        distances between them as weighted edges. Used to determine optimal
        ordering of token adjacency for later encoding.
        """
        # Following: https://www.datacamp.com/community/tutorials/networkx-python-graph-tutorial

        assert( callable(graph_type) )

        token_graph = graph_type()

        for tokens_tuple, distances in token_dist_pairs.items():
            # Prevent multiple adds. Should be no prob in any case
            if not token_graph.has_node(tokens_tuple[0]):
                token_graph.add_node(tokens_tuple[0])
            if not token_graph.has_node(tokens_tuple[1]):
                token_graph.add_node(tokens_tuple[1])

            # If multigraph allowed, add multiple edges between nodes.
            # If not, use the min distance.
            if graph_type == nx.MultiGraph:

                if not isinstance(distances, int):
                    for d in distances:
                        token_graph.add_edge( tokens_tuple[0], tokens_tuple[1], weight=d )
                else:
                    token_graph.add_edge( tokens_tuple[0], tokens_tuple[1], weight=distances )

            else:
                d_val = np.min(distances) if not isinstance(distances, int) else distances
                token_graph.add_edge( tokens_tuple[0], tokens_tuple[1], weight=d_val )

                if graph_type == nx.DiGraph:
                    token_graph.add_edge( tokens_tuple[1], tokens_tuple[0], weight=d_val )

        return token_graph

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist().

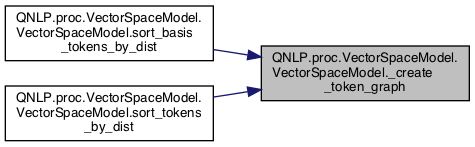

Here is the caller graph for this function:

_get_ordered_tokens()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel._get_ordered_tokens (   self, nx.DiGraph  token_graph,   ham_cycle = True  )

private

Solves the Hamiltonian cycle problem to define the ordering of the basis tokens.
If a cycle is not required, can solve the TSP problem instead (ham_cycle = False).

Definition at line 279 of file VectorSpaceModel.py.

    def _get_ordered_tokens(self, token_graph : nx.DiGraph, ham_cycle = True):
        """
        Solves the Hamiltonian cycle problem to define the ordering of the basis tokens.
        If a cycle is not required, can solve the TSP problem instead (ham_cycle = False).
        """
        #Must be a directed graph
        assert( isinstance(token_graph, nx.DiGraph) )
        #Must be fully connected
        assert( nx.tournament.is_strongly_connected(token_graph) )
        if ham_cycle:
            return nx.tournament.hamiltonian_path(token_graph)
        else:
            token_order, dist_total = self._tsp_token_solver(token_graph)
            return token_order[:]


References QNLP.proc.VectorSpaceModel.VectorSpaceModel._tsp_token_solver().

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist().

Here is the call graph for this function:

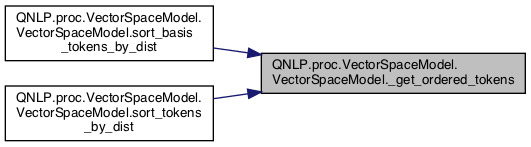

Here is the caller graph for this function:

_tsp_token_solver()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel._tsp_token_solver (   self, nx.DiGraph  token_graph  )

private

Using or-tools to solve TSP of token_graph.
Adapted from or-tools examples on TSP

Definition at line 296 of file VectorSpaceModel.py.

    def _tsp_token_solver(self, token_graph : nx.DiGraph):
        """
        Using or-tools to solve TSP of token_graph.
        Adapted from or-tools examples on TSP
        """
        dist_dat = {}
        dist_dat['distance_matrix'] = nx.adjacency_matrix(token_graph).todense().tolist() #Doesn't seem to like np matrices
        dist_dat['num_vehicles'] = 1 #Single route
        dist_dat['depot'] = 0 #Starting position at index 0; considering trying alternative options

        mgr =   pywrapcp.RoutingIndexManager(
                    len(dist_dat['distance_matrix']),
                    dist_dat['num_vehicles'], dist_dat['depot']
                )
        routing = pywrapcp.RoutingModel(mgr)

        def dist_matrix_val(idx_0, idx_1):
            """Returns value from distance matrix between nodes"""
            n0 = mgr.IndexToNode(idx_0)
            n1 = mgr.IndexToNode(idx_1)
            return dist_dat['distance_matrix'][n0][n1]

        transit_callback_index = routing.RegisterTransitCallback(dist_matrix_val)

        routing.SetArcCostEvaluatorOfAllVehicles(transit_callback_index)

        # Setting first solution heuristic.
        search_parameters = pywrapcp.DefaultRoutingSearchParameters()
        search_parameters.first_solution_strategy = (
            routing_enums_pb2.FirstSolutionStrategy.PATH_CHEAPEST_ARC)

        # Solve the problem.
        assignment = routing.SolveWithParameters(search_parameters)

        dist_total = assignment.ObjectiveValue()

        index = routing.Start(0)
        plan_output = ''
        token_order = []
        token_list = list(token_graph)

        while not routing.IsEnd(index):
            token_order.append(token_list[mgr.IndexToNode(index)])
            previous_index = index
            index = assignment.Value(routing.NextVar(index))
        return token_order, dist_total

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel._get_ordered_tokens().

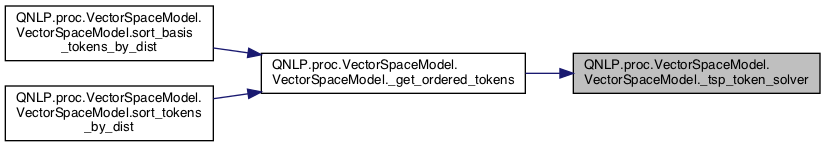

Here is the caller graph for this function:

assign_indexing()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.assign_indexing	(		self,
			token_type
	)

5. Encode the ordered tokens using a code based on indexed
location. Values close together will have fewer bit flips.

Definition at line 360 of file VectorSpaceModel.py.

    def assign_indexing(self, token_type):
        """ 5. Encode the ordered tokens using a code based on indexed
        location. Values close together will have fewer bit flips.
        """
        t_dict = {}

        for idx,token in enumerate( self.ordered_tokens[token_type]):
            t_dict.update({token : self.encoder.encode(idx, token_type) })

        self.encoded_tokens.update( {token_type : t_dict })

        return self.encoded_tokens

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.encoded_tokens, QNLP.proc.VectorSpaceModel.VectorSpaceModel.encoder, and QNLP.proc.VectorSpaceModel.VectorSpaceModel.ordered_tokens.

calc_diff_matrix()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.calc_diff_matrix

(

self

)

Definition at line 375 of file VectorSpaceModel.py.

    def calc_diff_matrix(self):
        "WIP"
        return
        X = np.zeros([len(a.tokens['verbs'])]*2)

        # Add forward and inverse mapping in dictionary
        tup_map_f = {k:i for i, k in enumerate(self.tokens['verbs'].keys()) }
        tup_map_i = {i:k for i, k in enumerate(self.tokens['verbs'].keys()) }

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens.

define_basis()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.define_basis	(		self,
			num_basis = {"verbs": 8, "nouns":8}
	)

2. Specify the number of basis elements in each space.
Dict holds keys of type and values of number of elements to request.

Definition at line 156 of file VectorSpaceModel.py.

    def define_basis(self, num_basis = {"verbs": 8, "nouns":8}):
        """ 2. Specify the number of basis elements in each space.
        Dict holds keys of type and values of number of elements to request."""
        if self.tokens == None:
            return
        basis = {}
        for t in ("nouns", "verbs"):
            basis.update( self.sort_basis_helper(t, num_basis[t]) )

        return basis

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_helper(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist().

Here is the call graph for this function:

Here is the caller graph for this function:

getPathLength()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.getPathLength	(		self,
			token_type
	)

Definition at line 384 of file VectorSpaceModel.py.

    def getPathLength(self, token_type):
        "Calculate cumulative path length of resulting basis ordering"
        total = 0
        for i in range(len(self.ordered_tokens)-1):
            try:
                total += self.distance_dictionary[token_type][( self.ordered_tokens[token_type][ i ], self.ordered_tokens[token_type][ i+1 ])]
            except:
                total += self.distance_dictionary[token_type][( self.ordered_tokens[token_type][ i+1 ], self.ordered_tokens[token_type][ i ])]
        return total

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.distance_dictionary, and QNLP.proc.VectorSpaceModel.VectorSpaceModel.ordered_tokens.

load_tokens()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.load_tokens	(		self,
			corpus_path,
			mode = 0,
			stop_words = True,
			use_spacy = False
	)

Definition at line 134 of file VectorSpaceModel.py.

    def load_tokens(self, corpus_path, mode=0, stop_words=True, use_spacy=False):
        " 1. Wraps the calls from process_corpus.py to tokenize. Returns None if path is "
        if path.exists(corpus_path):
            return self.pc.tokenize_corpus( pc.load_corpus(corpus_path), mode, stop_words, use_spacy)
        else:
            raise Exception("No corpus found at the given path.")

References QNLP.proc.VectorSpaceModel.VSM_pc.pc, QNLP.proc.VectorSpaceModel.VectorSpaceModel.pc, and QNLP.proc.process_corpus.tokenize_corpus().

Here is the call graph for this function:

sort_basis_helper()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_helper	(		self,
			token_type,
			num_elems
	)

Definition at line 144 of file VectorSpaceModel.py.

    def sort_basis_helper(self, token_type, num_elems):
        basis_dict = {token_type : {} }
        #consider Counter.most_common(num_elems)
        for counter, elem in enumerate(sorted(self.tokens[token_type].items(), key=lambda x : x[1][0], reverse = True)):
            if counter >= int(num_elems):
                break
            basis_dict[token_type].update({elem[0] : elem[1]})
        return basis_dict

References QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.define_basis().

Here is the caller graph for this function:

sort_basis_tokens_by_dist()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist	(		self,
			tokens_type,
			graph_type = nx.DiGraph,
			dist_metric = lambda x,
		np.abs(x[:, np.newaxis] - y)	y,
			num_basis = 16,
			ham_cycle = True
	)

Definition at line 202 of file VectorSpaceModel.py.

    def sort_basis_tokens_by_dist(self, tokens_type, graph_type = nx.DiGraph, dist_metric = lambda x,y : np.abs(x[:, np.newaxis] - y), num_basis = 16, ham_cycle = True):
        " 3. & 4."
        basis_tk_list = list(self.define_basis(num_basis={"verbs":num_basis, "nouns" : num_basis})[tokens_type].keys())

        basis_dist_dict = {}
        # pairwise distance calc
        if len(basis_tk_list) > 1:
            for c0,k0 in enumerate(basis_tk_list[0:]):
                for k1 in basis_tk_list[c0:]:
                    if k0 != k1:
                        a = self.tokens[tokens_type][k0][1]
                        b = self.tokens[tokens_type][k1][1]

                        basis_dist_dict[(k0,k1)] = np.min(dist_metric(a,b)) # list(map(np.unique, dist_metric(a,b)))
                        #sorted([ dist_metric(i,j) for i in self.tokens[tokens_type][k0][1] for j in self.tokens[tokens_type][k1][1] ])
        else:
            basis_dist_dict.update({ (basis_tk_list[0],basis_tk_list[0]) : 0})

        self.distance_dictionary.update( {tokens_type : basis_dist_dict } )

        """ Maps the tokens into a fully connected digraph, where each token
        is a node, and the weighted edge between them holds their
        respective distance. In the event of multiple distances between
        two node, assumes the minimum of the list.
        """
        token_graph = self._create_token_graph(basis_dist_dict, graph_type)
        """ Using the token graph, a Hamiltonian path (cycle if [0]
        connected to [-1]) is found for the graph, wherein the ordering gives
        the shortest path connecting each node, visited once. This gives a
        sufficiently ordered list for the encoding values.
        """

        self.ordered_tokens.update( {tokens_type : self._get_ordered_tokens(token_graph, ham_cycle) } )
        return self.ordered_tokens

References QNLP.proc.VectorSpaceModel.VectorSpaceModel._create_token_graph(), QNLP.proc.VectorSpaceModel.VectorSpaceModel._get_ordered_tokens(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.define_basis(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.distance_dictionary, QNLP.proc.VectorSpaceModel.VectorSpaceModel.ordered_tokens, and QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens.

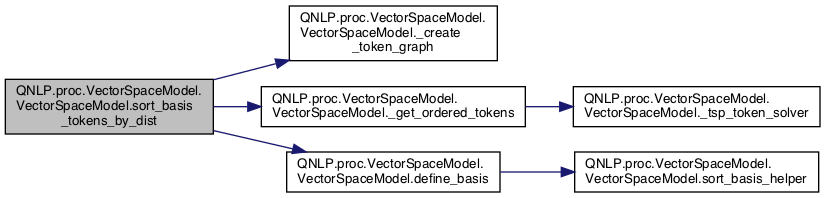

Here is the call graph for this function:

sort_tokens_by_dist()

def QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist	(		self,
			tokens_type,
			graph_type = nx.DiGraph,
			dist_metric = lambda x,
		np.abs(x[:, np.newaxis] - y)	y
	)

Definition at line 171 of file VectorSpaceModel.py.

    def sort_tokens_by_dist(self, tokens_type, graph_type = nx.DiGraph, dist_metric = lambda x,y : np.abs(x[:, np.newaxis] - y) ):
        " 3. & 4."
        tk_list = list(self.tokens[tokens_type].keys())
        dist_dict = {}
        # pairwise distance calc
        for c0,k0 in enumerate(tk_list[0:-1]):
            for k1 in tk_list[c0:]:
                if k0 != k1:
                    a = self.tokens[tokens_type][k0][1]
                    b = self.tokens[tokens_type][k1][1]

                    dist_dict[(k0,k1)] = np.min(dist_metric(a,b)) # list(map(np.unique, dist_metric(a,b)))
                    #sorted([ dist_metric(i,j) for i in self.tokens[tokens_type][k0][1] for j in self.tokens[tokens_type][k1][1] ])

        self.distance_dictionary.update( { tokens_type : dist_dict} )

        """ Maps the tokens into a fully connected digraph, where each token
        is a node, and the weighted edge between them holds their
        respective distance. In the event of multiple distances between
        two node, assumes the minimum of the list.
        """
        token_graph = self._create_token_graph(dist_dict, graph_type)
        """ Using the token graph, a Hamiltonian path (cycle if [0]
        connected to [-1]) is found for the graph, wherein the ordering gives
        the shortest path connecting each node, visited once. This gives a
        sufficiently ordered list for the encoding values.
        """

        self.ordered_tokens.update( { tokens_type : self._get_ordered_tokens(token_graph) } )
        return self.ordered_tokens

References QNLP.proc.VectorSpaceModel.VectorSpaceModel._create_token_graph(), QNLP.proc.VectorSpaceModel.VectorSpaceModel._get_ordered_tokens(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.distance_dictionary, QNLP.proc.VectorSpaceModel.VectorSpaceModel.ordered_tokens, and QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens.

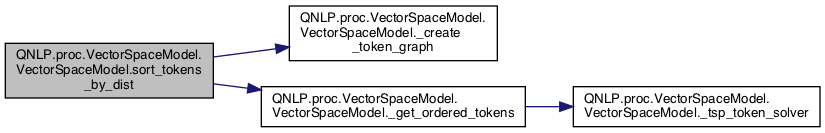

Here is the call graph for this function:

Field Documentation

distance_dictionary

QNLP.proc.VectorSpaceModel.VectorSpaceModel.distance_dictionary

Definition at line 127 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel._calc_token_order_distance(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.getPathLength(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist().

encoded_tokens

QNLP.proc.VectorSpaceModel.VectorSpaceModel.encoded_tokens

Definition at line 128 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.assign_indexing().

encoder

QNLP.proc.VectorSpaceModel.VectorSpaceModel.encoder

Definition at line 126 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.assign_indexing().

ordered_tokens

QNLP.proc.VectorSpaceModel.VectorSpaceModel.ordered_tokens

Definition at line 129 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.assign_indexing(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.getPathLength(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist().

pc

QNLP.proc.VectorSpaceModel.VectorSpaceModel.pc

Definition at line 124 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.load_tokens().

tokens

QNLP.proc.VectorSpaceModel.VectorSpaceModel.tokens

Definition at line 125 of file VectorSpaceModel.py.

Referenced by QNLP.proc.VectorSpaceModel.VectorSpaceModel.calc_diff_matrix(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.define_basis(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_helper(), QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_basis_tokens_by_dist(), and QNLP.proc.VectorSpaceModel.VectorSpaceModel.sort_tokens_by_dist().

---

The documentation for this class was generated from the following file:

• /Users/mlxd/Desktop/intel-qnlp-rc2/modules/py/pkgs/QNLP/proc/VectorSpaceModel.py
