QNLP::GateCache< SimulatorType > Class Template Reference

Class to cache intermediate matrix values used within other parts of the computation. Heavily depended upon by NCU to store sqrt matrix values following Barenco et al. (1995) decomposition. More...

#include <GateCache.hpp>

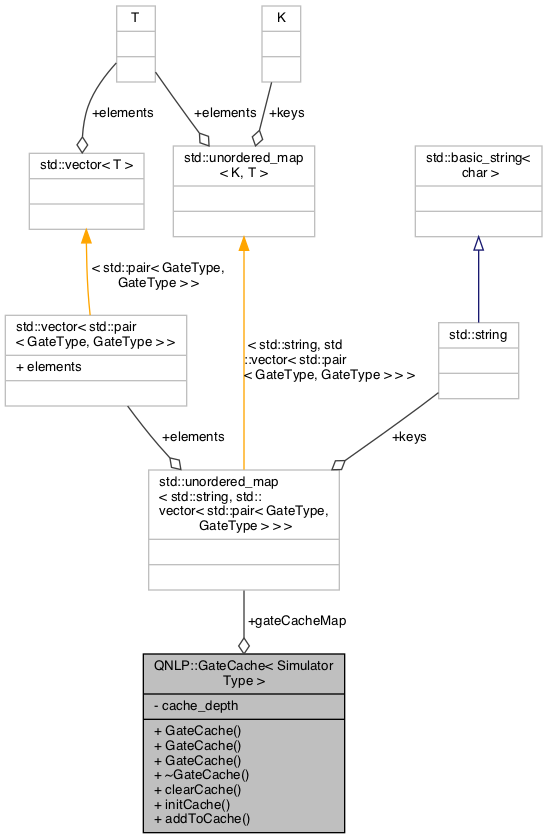

Collaboration diagram for QNLP::GateCache< SimulatorType >:

Public Types
using	GateType = decltype(std::declval< SimulatorType >().getGateX())

Public Member Functions
	GateCache ()
	GateCache (SimulatorType &qSim)
	GateCache (SimulatorType &qSim, std::size_t default_depth)
	~GateCache ()
void	clearCache ()
void	initCache (SimulatorType &sim, std::size_t sqrt_depth)
	Initialise the gate cache with PauliX,Y,Z and H up to a given sqrt depth. More...
void	addToCache (SimulatorType &sim, const std::string gateLabel, const GateType &gate, std::size_t max_depth)
	Adds new gate to the cache up to a given sqrt depth. More...

Data Fields
std::unordered_map< std::string, std::vector< std::pair< GateType, GateType > > >	gateCacheMap

Private Attributes
std::size_t	cache_depth

Detailed Description

template<class SimulatorType>
class QNLP::GateCache< SimulatorType >

Class to cache intermediate matrix values used within other parts of the computation. Heavily depended upon by NCU to store sqrt matrix values following Barenco et al. (1995) decomposition.

Template Parameters

SimulatorType

The simulator type with SimulatorGeneral as base class

Definition at line 95 of file GateCache.hpp.

Member Typedef Documentation

GateType

template<class SimulatorType>

using QNLP::GateCache< SimulatorType >::GateType = decltype(std::declval<SimulatorType>().getGateX())

Definition at line 114 of file GateCache.hpp.

Constructor & Destructor Documentation

GateCache() [1/3]

template<class SimulatorType>

QNLP::GateCache< SimulatorType >::GateCache ( )

inline

Definition at line 100 of file GateCache.hpp.

: cache_depth(0) { };

GateCache() [2/3]

template<class SimulatorType>

QNLP::GateCache< SimulatorType >::GateCache ( SimulatorType &  qSim )

inline

Definition at line 102 of file GateCache.hpp.

                                       : GateCache() {
            //initCache(qSim, 16);
            //cache_depth = 16;
        }

GateCache() [3/3]

template<class SimulatorType>

QNLP::GateCache< SimulatorType >::GateCache ( SimulatorType &  qSim, std::size_t  default_depth  )

inline

Definition at line 107 of file GateCache.hpp.

                                                                : cache_depth(default_depth) {
            initCache(qSim, cache_depth);
        }

References QNLP::GateCache< SimulatorType >::cache_depth, and QNLP::GateCache< SimulatorType >::initCache().

Here is the call graph for this function:

~GateCache()

template<class SimulatorType>

QNLP::GateCache< SimulatorType >::~GateCache ( )

inline

Definition at line 111 of file GateCache.hpp.

{ clearCache(); }

References QNLP::GateCache< SimulatorType >::clearCache().

Here is the call graph for this function:

Member Function Documentation

addToCache()

template<class SimulatorType>

void QNLP::GateCache< SimulatorType >::addToCache ( SimulatorType &  sim, const std::string  gateLabel, const GateType &  gate, std::size_t  max_depth  )

inline

Adds new gate to the cache up to a given sqrt depth.

Parameters

gateLabel	Label of gate to index into map
gate	Gate matrix
max_depth	Depth of calculations for sqrt and associate adjoints

Definition at line 165 of file GateCache.hpp.

                                                                                                                 {
            if(max_depth <= cache_depth && gateCacheMap.find(gateLabel) != gateCacheMap.end() ){
                return;
            }
            else if(max_depth > cache_depth){
                initCache(sim, max_depth);
            }

            std::vector< std::pair<GateType, GateType> > v;

            v.reserve(max_depth + 1);
            v.push_back(std::make_pair( gate, adjointMatrix( gate ) ) );
            for( std::size_t depth = 1; depth <= max_depth; depth++ ){
                auto m = matrixSqrt<GateType>( v[depth-1].first );
                v.emplace(v.begin() + depth, std::make_pair( m, adjointMatrix( m ) ) );
            }
            gateCacheMap.emplace(std::make_pair(gateLabel, v) );
        }

References QNLP::adjointMatrix(), QNLP::GateCache< SimulatorType >::cache_depth, QNLP::GateCache< SimulatorType >::gateCacheMap, QNLP::GateCache< SimulatorType >::initCache(), CircuitPrinter.circuit_printer::max_depth, and ncu_opt_tester::sim.

Here is the call graph for this function:

clearCache()

template<class SimulatorType>

void QNLP::GateCache< SimulatorType >::clearCache ( )

inline

Definition at line 119 of file GateCache.hpp.

                         {
            gateCacheMap.clear();
            cache_depth = 0;
        }

References QNLP::GateCache< SimulatorType >::cache_depth, and QNLP::GateCache< SimulatorType >::gateCacheMap.

Referenced by QNLP::GateCache< SimulatorType >::~GateCache().

Here is the caller graph for this function:

initCache()

template<class SimulatorType>

void QNLP::GateCache< SimulatorType >::initCache ( SimulatorType &  sim, std::size_t  sqrt_depth  )

inline

Initialise the gate cache with PauliX,Y,Z and H up to a given sqrt depth.

Parameters

sim	The simulator object
sqrt_depth	The depth to which calculate sqrt matrices and their respective adjoints

Definition at line 130 of file GateCache.hpp.

                                                                {
            // If we do not have a sufficient circuit depth, clear and rebuild up to given depth.
            // Could ideally use existing values and rebuild from lowest depth, but consider this
            // after we have a working implementation.

            if(cache_depth < sqrt_depth ){
                gateCacheMap.clear();
                cache_depth = 0;
            }

            if (gateCacheMap.empty()){

                gateCacheMap["X"] = std::vector< std::pair<GateType, GateType> > { std::make_pair( sim.getGateX(), adjointMatrix( sim.getGateX() ) ) };
                gateCacheMap["Y"] = std::vector< std::pair<GateType, GateType> > { std::make_pair( sim.getGateY(), adjointMatrix( sim.getGateY() ) ) };
                gateCacheMap["Z"] = std::vector< std::pair<GateType, GateType> > { std::make_pair( sim.getGateZ(), adjointMatrix( sim.getGateZ() ) ) };
                gateCacheMap["H"] = std::vector< std::pair<GateType, GateType> > { std::make_pair( sim.getGateH(), adjointMatrix( sim.getGateH() ) ) };

                for( std::size_t depth = 1; depth <= sqrt_depth; depth++ ){
                    for( auto& kv : gateCacheMap ){
                        kv.second.reserve(sqrt_depth + 1);
                        auto m = matrixSqrt<GateType>(kv.second[depth-1].first);
                        kv.second.emplace(kv.second.begin() + depth, std::make_pair( m, adjointMatrix( m ) ) );
                    }
                }
                cache_depth = sqrt_depth;
            }
        }

References QNLP::adjointMatrix(), QNLP::GateCache< SimulatorType >::cache_depth, QNLP::GateCache< SimulatorType >::gateCacheMap, and ncu_opt_tester::sim.

Referenced by QNLP::GateCache< SimulatorType >::addToCache(), and QNLP::GateCache< SimulatorType >::GateCache().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

cache_depth

template<class SimulatorType>

std::size_t QNLP::GateCache< SimulatorType >::cache_depth

private

Definition at line 97 of file GateCache.hpp.

Referenced by QNLP::GateCache< SimulatorType >::addToCache(), QNLP::GateCache< SimulatorType >::clearCache(), QNLP::GateCache< SimulatorType >::GateCache(), and QNLP::GateCache< SimulatorType >::initCache().

gateCacheMap

template<class SimulatorType>

std::unordered_map<std::string, std::vector< std::pair<GateType, GateType> > > QNLP::GateCache< SimulatorType >::gateCacheMap

Definition at line 117 of file GateCache.hpp.

Referenced by QNLP::GateCache< SimulatorType >::addToCache(), QNLP::GateCache< SimulatorType >::clearCache(), and QNLP::GateCache< SimulatorType >::initCache().

---

The documentation for this class was generated from the following file:

• /Users/mlxd/Desktop/intel-qnlp-rc2/modules/utils/GateCache.hpp
