#include <ISimulator.hpp>

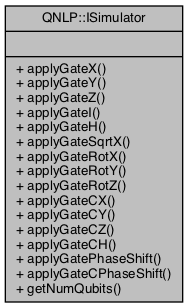

Collaboration diagram for QNLP::ISimulator:

Public Member Functions
virtual void	applyGateX (std::size_t qubit_idx)=0
	Apply Pauli-X gate to qubit at qubit_idx. More...

virtual void	applyGateY (std::size_t qubit_idx)=0
	Apply Pauli-Y gate to qubit at qubit_idx. More...

virtual void	applyGateZ (std::size_t qubit_idx)=0
	Apply Pauli-Z gate to qubit at qubit_idx. More...

virtual void	applyGateI (std::size_t qubit_idx)=0
	Apply Identity to qubit at qubit_idx. More...

virtual void	applyGateH (std::size_t qubit_idx)=0
	Apply Hadamard gate to qubit at qubit_idx. More...

virtual void	applyGateSqrtX (std::size_t qubit_idx)=0
	Apply \sqrt{Pauli-X} gate to qubit at qubit_idx. More...

virtual void	applyGateRotX (std::size_t qubit_idx, double angle_rad)=0
	Arbitrary rotation around X axis by angle 'angle_rad' in radians. More...

virtual void	applyGateRotY (std::size_t qubit_idx, double angle_rad)=0
	Arbitrary rotation around Y axis by angle 'angle_rad' in radians. More...

virtual void	applyGateRotZ (std::size_t qubit_idx, double angle_rad)=0
	Arbitrary rotation around Z axis by angle 'angle_rad' in radians. More...

virtual void	applyGateCX (std::size_t control, std::size_t target)=0
	Apply Controlled Pauli-X (CNOT) on target qubit. More...

virtual void	applyGateCY (std::size_t control, std::size_t target)=0
	Apply Controlled Pauli-Y on target qubit. More...

virtual void	applyGateCZ (std::size_t control, std::size_t target)=0
	Apply Controlled Pauli-Z on target qubit. More...

virtual void	applyGateCH (std::size_t control, std::size_t target)=0
	Apply Controlled Hadamard on target qubit. More...

virtual void	applyGatePhaseShift (double angle, std::size_t qubit_idx)=0
	Apply Phase Shift on specified qubit by angle in radians. More...

virtual void	applyGateCPhaseShift (double angle, std::size_t control, std::size_t target)=0
	Apply Controlled Phase Shift on specified qubit by angle in radians. More...

virtual std::size_t	getNumQubits ()=0
	Get the Number of qubits in the simulator. More...

Detailed Description

Definition at line 22 of file ISimulator.hpp.

Member Function Documentation

◆ applyGateCH()

virtual void QNLP::ISimulator::applyGateCH	(	std::size_t	control,
		std::size_t	target
	)

pure virtual

Apply Controlled Hadamard on target qubit.

Parameters

control	Qubit index acting as control
target	Qubit index acting as target

◆ applyGateCPhaseShift()

virtual void QNLP::ISimulator::applyGateCPhaseShift	(	double	angle,
		std::size_t	control,
		std::size_t	target
	)

pure virtual

Apply Controlled Phase Shift on specified qubit by angle in radians.

Parameters

angle	Angle of phase shift in rads
control	Qubit index acting as control
target	Qubit index acting as target

◆ applyGateCX()

virtual void QNLP::ISimulator::applyGateCX	(	std::size_t	control,
		std::size_t	target
	)

pure virtual

Apply Controlled Pauli-X (CNOT) on target qubit.

Parameters

control	Qubit index acting as control
target	Qubit index acting as target

◆ applyGateCY()

virtual void QNLP::ISimulator::applyGateCY	(	std::size_t	control,
		std::size_t	target
	)

pure virtual

Apply Controlled Pauli-Y on target qubit.

Parameters

control	Qubit index acting as control
target	Qubit index acting as target

◆ applyGateCZ()

virtual void QNLP::ISimulator::applyGateCZ	(	std::size_t	control,
		std::size_t	target
	)

pure virtual

Apply Controlled Pauli-Z on target qubit.

Parameters

control	Qubit index acting as control
target	Qubit index acting as target

◆ applyGateH()

virtual void QNLP::ISimulator::applyGateH ( std::size_t qubit_idx )

pure virtual

Apply Hadamard gate to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ applyGateI()

virtual void QNLP::ISimulator::applyGateI ( std::size_t qubit_idx )

pure virtual

Apply Identity to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ applyGatePhaseShift()

virtual void QNLP::ISimulator::applyGatePhaseShift	(	double	angle,
		std::size_t	qubit_idx
	)

pure virtual

Apply Phase Shift on specified qubit by angle in radians.

Parameters

angle	Angle of phase shift in rads
qubit_idx	Index of target qubit to perform phase shift upon

◆ applyGateRotX()

virtual void QNLP::ISimulator::applyGateRotX	(	std::size_t	qubit_idx,
		double	angle_rad
	)

pure virtual

Arbitrary rotation around X axis by angle 'angle_rad' in radians.

Parameters

qubit_idx	Index of qubit to apply rotation upon
angle_rad	Angle of rotation in radians

◆ applyGateRotY()

virtual void QNLP::ISimulator::applyGateRotY	(	std::size_t	qubit_idx,
		double	angle_rad
	)

pure virtual

Arbitrary rotation around Y axis by angle 'angle_rad' in radians.

Parameters

qubit_idx	Index of qubit to apply rotation upon
angle_rad	Angle of rotation in radians

◆ applyGateRotZ()

virtual void QNLP::ISimulator::applyGateRotZ	(	std::size_t	qubit_idx,
		double	angle_rad
	)

pure virtual

Arbitrary rotation around Z axis by angle 'angle_rad' in radians.

Parameters

qubit_idx	Index of qubit to apply rotation upon
angle_rad	Angle of rotation in radians

◆ applyGateSqrtX()

virtual void QNLP::ISimulator::applyGateSqrtX ( std::size_t qubit_idx )

pure virtual

Apply \sqrt{Pauli-X} gate to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ applyGateX()

virtual void QNLP::ISimulator::applyGateX ( std::size_t qubit_idx )

pure virtual

Apply Pauli-X gate to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ applyGateY()

virtual void QNLP::ISimulator::applyGateY ( std::size_t qubit_idx )

pure virtual

Apply Pauli-Y gate to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ applyGateZ()

virtual void QNLP::ISimulator::applyGateZ ( std::size_t qubit_idx )

pure virtual

Apply Pauli-Z gate to qubit at qubit_idx.

Parameters

qubit_idx Index of qubit to apply gate upon

◆ getNumQubits()

virtual std::size_t QNLP::ISimulator::getNumQubits ( )

pure virtual

Get the Number of qubits in the simulator.

Returns: std::size_t Returns the length of (number of qubits in) the quantum register.

Referenced by TEST_CASE().

Here is the caller graph for this function:

The documentation for this class was generated from the following file:

/Users/mlxd/Desktop/intel-qnlp-rc2/modules/simulator/ISimulator.hpp
