#include <GateWriter.hpp>

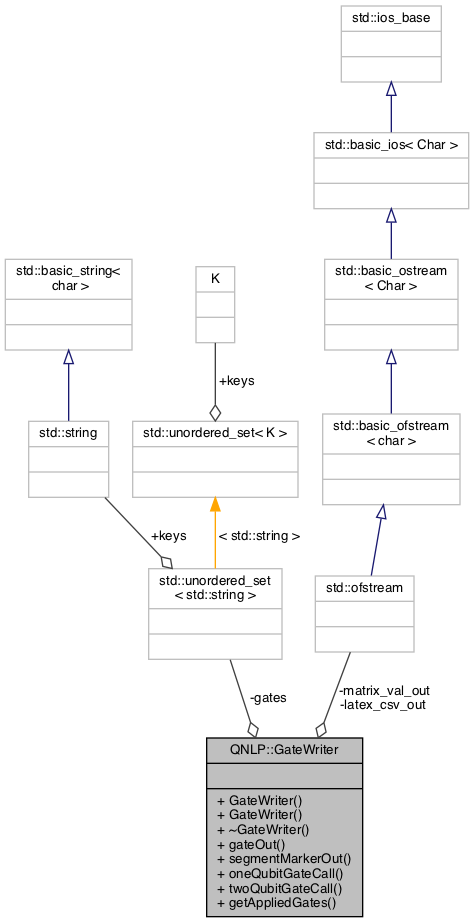

Collaboration diagram for QNLP::GateWriter:

Public Member Functions
	GateWriter ()
	Construct a new Gate Writer object. More...

	GateWriter (std::string latexCSVFilename, std::string matrixFilename)
	Construct a new Gate Writer object. More...

	~GateWriter ()
	Destroy the Gate Writer object. More...

void	gateOut (std::string gateLabel, std::string matrixVals)
	Writes the given matrix to matrix_val_out. Assumes matrix type is printable. More...

void	segmentMarkerOut (std::string segmentString)
	Marks the output file with a string pattern to allow easy of parsing for gates to algorithm operations. More...

void	oneQubitGateCall (const std::string &gateLabel, const std::string &matrixVals, std::size_t gate_idx)
	Writes the single qubit gate to disk. -1 used to denote lack of control line. More...

void	twoQubitGateCall (const std::string gateLabel, const std::string matrixVals, std::size_t gate_ctrl_idx, std::size_t gate_tgt_idx)
	Writes the controlled gate to disk. More...

std::unordered_set< std::string > &	getAppliedGates ()
	Return the map of all applied gates so far. More...

Private Attributes
std::ofstream	latex_csv_out

std::ofstream	matrix_val_out

std::unordered_set< std::string >	gates

Detailed Description

Definition at line 9 of file GateWriter.hpp.

Constructor & Destructor Documentation

◆ GateWriter() [1/2]

QNLP::GateWriter::GateWriter ( )

inline

Construct a new Gate Writer object.

Definition at line 19 of file GateWriter.hpp.

19 : GateWriter("qnlp_gate_calls.csv", "qnlp_matrices.log"){

20 }

QNLP::GateWriter::GateWriter

GateWriter()

Construct a new Gate Writer object.

Definition: GateWriter.hpp:19

◆ GateWriter() [2/2]

QNLP::GateWriter::GateWriter	(	std::string	latexCSVFilename,
		std::string	matrixFilename
	)

inline

Construct a new Gate Writer object.

Parameters

latexCSVFilename	Filename for Latex CSV
matrixFilename	Filename for matrix

Definition at line 28 of file GateWriter.hpp.

                                                                           {
             //Check if file exists, add header upon creation if not
             std::ifstream file_exists(latexCSVFilename.c_str()) ;

             latex_csv_out.open ( latexCSVFilename, std::ofstream::out | std::ofstream::app );
             matrix_val_out.open( matrixFilename, std::ofstream::out | std::ofstream::app );

             if (!(bool) file_exists)
                 latex_csv_out << "gate_label,gate_ctrl,gate_tgt,gate_value" << std::endl;
         }

References latex_csv_out, and matrix_val_out.

◆ ~GateWriter()

QNLP::GateWriter::~GateWriter ( )

inline

Destroy the Gate Writer object.

Definition at line 43 of file GateWriter.hpp.

                      {
             latex_csv_out  << "\n" << std::endl;
             matrix_val_out << "\n" << std::endl;

             latex_csv_out.close();
             matrix_val_out.close();
         }

References latex_csv_out, and matrix_val_out.

Member Function Documentation

◆ gateOut()

void QNLP::GateWriter::gateOut	(	std::string	gateLabel,
		std::string	matrixVals
	)

inline

Writes the given matrix to matrix_val_out. Assumes matrix type is printable.

Parameters

matrix

Definition at line 56 of file GateWriter.hpp.

                                                                {
             if( !gates.count(gateLabel)){
                 matrix_val_out << gateLabel << "," << matrixVals << std::endl;
                 gates.insert(gateLabel);
             }
         }

References gates, and matrix_val_out.

Referenced by twoQubitGateCall().

Here is the caller graph for this function:

◆ getAppliedGates()

std::unordered_set<std::string>& QNLP::GateWriter::getAppliedGates ( )

inline

Return the map of all applied gates so far.

Returns: std::unordered_map<std::string, Mat2x2Type>&

Definition at line 101 of file GateWriter.hpp.

                                                       {
             return gates;
         }

References gates.

◆ oneQubitGateCall()

void QNLP::GateWriter::oneQubitGateCall	(	const std::string &	gateLabel,
		const std::string &	matrixVals,
		std::size_t	gate_idx
	)

inline

Writes the single qubit gate to disk. -1 used to denote lack of control line.

Parameters

gateLabel	std::string used to label gate name.
matrixVal	The matrix representing the gate.
gate_idx	The qubit index to apply gate.

Definition at line 79 of file GateWriter.hpp.

                                                                                                           {
             twoQubitGateCall(gateLabel, matrixVals, -1, gate_idx);
         }

References twoQubitGateCall().

Referenced by TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ segmentMarkerOut()

void QNLP::GateWriter::segmentMarkerOut ( std::string segmentString )

inline

Marks the output file with a string pattern to allow easy of parsing for gates to algorithm operations.

Parameters

segmentString The name of the segment to print into the file.

Definition at line 68 of file GateWriter.hpp.

                                                       {
             latex_csv_out << "#!#{" << segmentString << "}#!#" << std::endl;
         }

References latex_csv_out.

◆ twoQubitGateCall()

void QNLP::GateWriter::twoQubitGateCall	(	const std::string	gateLabel,
		const std::string	matrixVals,
		std::size_t	gate_ctrl_idx,
		std::size_t	gate_tgt_idx
	)

inline

Writes the controlled gate to disk.

Parameters

gateLabel	std::string used to label gate name.
matrixVal	The matrix representing the gate.
gate_ctrl_idx	The qubit index for the gate control line
gate_tgt_idx	The qubit index for the gate target line

Definition at line 91 of file GateWriter.hpp.

                                                                                                                                      {
             latex_csv_out << gateLabel << "," << gate_ctrl_idx << "," << gate_tgt_idx << "," << matrixVals << std::endl;
             gateOut(gateLabel, matrixVals);
         }
