test_hamming.cpp File Reference

#include "hamming.hpp"
#include "Simulator.hpp"
#include "IntelSimulator.cpp"
#include "catch2/catch.hpp"
#include <bitset>

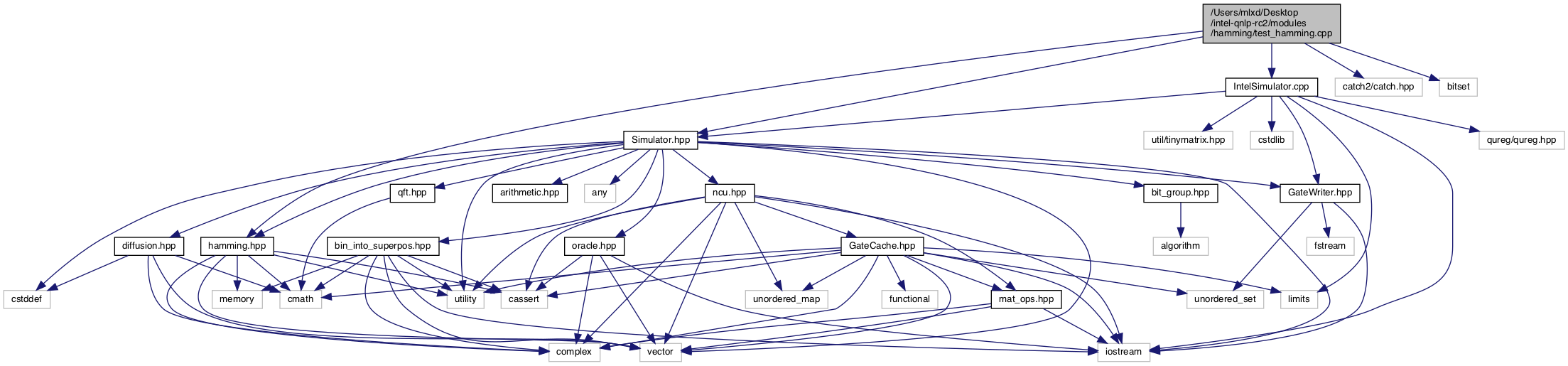

Include dependency graph for test_hamming.cpp:

Go to the source code of this file.

Macros
#define	IS_SET(byte, bit)

Typedefs
typedef ComplexDP	Type

Functions
std::size_t	calc_hammingDist (std::size_t pattern1, std::size_t pattern2, std::size_t len_bin_pattern)
	Calulates the Hamming distance between two binary strings stored as integers. More...
std::map< std::size_t, double >	expected_amplitude (std::vector< std::size_t > &target_vec, std::size_t test, std::size_t len_bin_pattern)
	Classically calculates the Hamming distance between each binary string in a vector and a test binary string. More...
	TEST_CASE ("Test Hamming distance with Roatation about y axis routine","[hammingroty]")
	Test the Hamming distance routine which uses Y rotations to encode the Hamming distance into each states' ampitudes. Each state's amplitude is calculated classically and compared to the quantum simulator computed counterpart. More...

Macro Definition Documentation

IS_SET

#define IS_SET	(		byte,
			bit
	)

Definition at line 10 of file test_hamming.cpp.

Typedef Documentation

Type

typedef ComplexDP Type

Definition at line 15 of file test_hamming.cpp.

Function Documentation

calc_hammingDist()

std::size_t calc_hammingDist	(	std::size_t	pattern1,
		std::size_t	pattern2,
		std::size_t	len_bin_pattern
	)

Calulates the Hamming distance between two binary strings stored as integers.

Parameters

pattern1	First binary pattern
pattern2	Second binary pattern
len_bin_pattern	Length if binary strings

Returns

std::size_t Returns Hamming distance between binary representation of two integers.

Definition at line 27 of file test_hamming.cpp.

                                                                                             {
    std::size_t num_diffs = 0;

    for(int i = 0; i < len_bin_pattern; i++){
        num_diffs += (IS_SET(pattern1,i) == IS_SET(pattern2,i));
    }
    return num_diffs;
}

References IS_SET.

Referenced by expected_amplitude().

Here is the caller graph for this function:

expected_amplitude()

std::map<std::size_t, double> expected_amplitude	(	std::vector< std::size_t > &	target_vec,
		std::size_t	test,
		std::size_t	len_bin_pattern
	)

Classically calculates the Hamming distance between each binary string in a vector and a test binary string.

Parameters

target_vec	Vector consisting of binary strings represented in std::size_t format
test	Test vector for calculating Hamming distance between it and all binary strings in target_vec
len_bin_pattern	Length if binary strings

Returns

std::map<std::size_t, double> Returns Hash map of encoded integers and the real component of their expected amplitudes which is calculated classically.

Definition at line 44 of file test_hamming.cpp.

                                                                                                                         {
    const std::size_t num_bin_pattern = target_vec.size();
    double norm_factor = 0.0;

    // Calculate Hamming Distance for each training pattern to test pattern
    std::map<std::size_t, double> exp_amp;
    for(std::size_t i = 0; i < num_bin_pattern; i++){
        exp_amp.insert(pair<std::size_t, double>(target_vec[i],(double) calc_hammingDist(target_vec[i],test, len_bin_pattern)));
    }

    for(auto& [k,v] : exp_amp){
        v = sin(v * 0.5* M_PI / (double) len_bin_pattern);
        norm_factor += v*v;
    }

    norm_factor = sqrt(norm_factor);

    for(auto& [k,v] : exp_amp){
        v /= norm_factor;
    }

    return exp_amp;
}

References calc_hammingDist(), and QNLP_Python_MPI::num_bin_pattern.

Referenced by TEST_CASE().

Here is the call graph for this function:

Here is the caller graph for this function:

TEST_CASE()

TEST_CASE	(	"Test Hamming distance with Roatation about y axis routine"	,
		""	[hammingroty]
	)

Test the Hamming distance routine which uses Y rotations to encode the Hamming distance into each states' ampitudes. Each state's amplitude is calculated classically and compared to the quantum simulator computed counterpart.

Definition at line 72 of file test_hamming.cpp.

                                                                                      {
    const std::size_t max_qubits = 6;
    double mach_eps = 7./3. - 4./3. -1.;

    std::size_t num_qubits;
    std::size_t len_reg_auxiliary;
    std::size_t num_bin_pattern;
    std::size_t val;

    std::size_t test_pattern = 2;

    for(std::size_t len_reg_memory = 2; len_reg_memory < max_qubits; len_reg_memory++){
        DYNAMIC_SECTION("Testing " << len_reg_memory << " memory qubits"){

            for(std::size_t test_pattern = 2; test_pattern < pow(2,len_reg_memory); test_pattern++){
                DYNAMIC_SECTION("Testing test pattern (integer format) = " << test_pattern ){

                    // Experiment set-up
                    num_qubits = 2*len_reg_memory + 2;
                    len_reg_auxiliary = len_reg_memory + 2;
                    num_bin_pattern = pow(2,len_reg_memory);

                    IntelSimulator sim(num_qubits);
                    sim.initRegister();
                    auto &r = sim.getQubitRegister();

                    // Set up registers to store indices
                    std::vector<std::size_t> reg_memory(len_reg_memory);
                    for(std::size_t i = 0; i < len_reg_memory; i++){
                        reg_memory[i] = i;
                    }
                    std::vector<std::size_t> reg_auxiliary(len_reg_auxiliary);
                    for(std::size_t i = 0; i < len_reg_auxiliary; i++){
                        reg_auxiliary[i] = i + len_reg_memory;
                    }

                    // Init data to encode
                    std::vector<std::size_t> vec_to_encode(num_bin_pattern);
                    for(std::size_t i = 0; i < num_bin_pattern; i++){
                        vec_to_encode[i] = i;
                    }

                    // Encode
                    sim.encodeBinToSuperpos_unique(reg_memory, reg_auxiliary, vec_to_encode, len_reg_memory);

                    // Compute Hamming distance
                    sim.applyHammingDistanceRotY(test_pattern, reg_memory, reg_auxiliary, len_reg_memory);

                    // Post-selection
                    sim.collapseToBasisZ(reg_auxiliary[len_reg_auxiliary-2], 1);

                    // Generate expected amplitudes from classical computation
                    std::map<std::size_t, double> exp_amp =  expected_amplitude(vec_to_encode, test_pattern, len_reg_memory);

                    for(int i = 0; i < num_bin_pattern; i++){
                        REQUIRE(r[i].real() + 10*mach_eps == Approx(0.).margin(1e-12));
                        REQUIRE(r[i].imag() + 10*mach_eps == Approx(0.).margin(1e-12) );

                    }
                    for(int i = num_bin_pattern; i < pow(2,2*len_reg_memory); i++){
                        REQUIRE(r[i].real() + 10*mach_eps == Approx(0.).margin(1e-12));
                        REQUIRE(r[i].imag() + 10*mach_eps == Approx(0.).margin(1e-12) );
                    }
                    // Check relevant state's amplitudes are set correctly.
                    for(int i = pow(2,2*len_reg_memory); i < pow(2,2*len_reg_memory) + num_bin_pattern; i++){

                        CAPTURE( i, r[i].real() + 10*mach_eps == Approx(exp_amp[vec_to_encode[i - pow(2,2*len_reg_memory)]]).margin(1e-12));
                        REQUIRE(r[i].real() + 10*mach_eps == Approx(exp_amp[vec_to_encode[i - pow(2,2*len_reg_memory)]]).margin(1e-12));
                        REQUIRE(r[i].imag() + 10*mach_eps == Approx(0.).margin(1e-12) );

                    }
                    for(int i = pow(2,2*len_reg_memory) + num_bin_pattern; i < pow(2,num_qubits); i++){
                        REQUIRE(r[i].real() + 10*mach_eps == Approx(0.).margin(1e-12));
                        REQUIRE(r[i].imag() + 10*mach_eps == Approx(0.).margin(1e-12) );

                    }

                    val = sim.applyMeasurementToRegister(reg_memory);

                    CHECK_THAT(vec_to_encode, VectorContains(val));

                }
            }
        }
    }
}

References expected_amplitude(), QNLP_Python_MPI::len_reg_auxiliary, QNLP_EndToEnd_MPI::len_reg_memory, QNLP_Python_MPI::num_bin_pattern, ncu_opt_tester::num_qubits, QNLP_Python_MPI::reg_auxiliary, QNLP_EndToEnd_MPI::reg_memory, ncu_opt_tester::sim, QNLP_EndToEnd_MPI::test_pattern, QNLP.tagging.tag_file::val, and QNLP_EndToEnd_MPI::vec_to_encode.

Here is the call graph for this function:
