test_arithmetic.cpp File Reference

Tests for quantum arithmetic using the (QFT) implementation. More...

#include "catch2/catch.hpp"
#include "Simulator.hpp"
#include "IntelSimulator.cpp"
#include <memory>
#include "arithmetic.hpp"
#include <bitset>

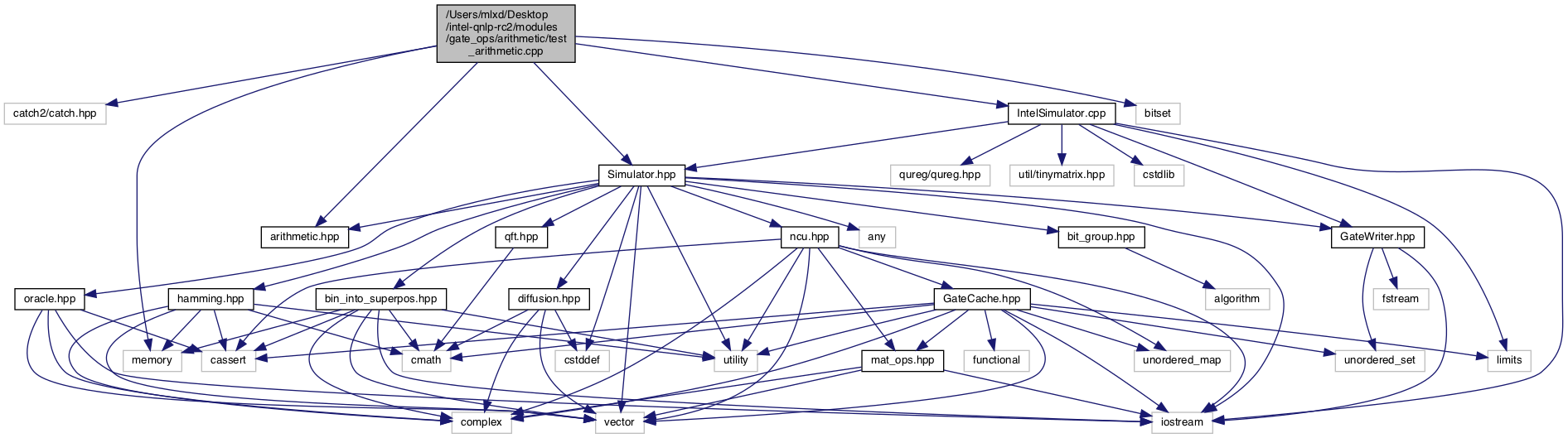

Include dependency graph for test_arithmetic.cpp:

Go to the source code of this file.

Functions
	TEST_CASE ("Arithmetic subtraction","[arithmetic]")
	Test Arithmetic: subtraction. More...
	TEST_CASE ("Arithmetic summation","[arithmetic]")
	Test Arithmetic: Summation. More...

Detailed Description

Tests for quantum arithmetic using the (QFT) implementation.

Author

Lee J. O'Riordan (lee.o.nosp@m.rior.nosp@m.dan@i.nosp@m.chec.nosp@m..ie)

Version

0.1

Date

2019-09-10

Copyright

Copyright (c) 2019

Definition in file test_arithmetic.cpp.

Function Documentation

TEST_CASE() [1/2]

TEST_CASE	(	"Arithmetic subtraction"	,
		""	[arithmetic]
	)

Test Arithmetic: subtraction.

Definition at line 27 of file test_arithmetic.cpp.

                                                  {
    std::size_t num_qubits = 6;
    IntelSimulator sim(num_qubits);
    Arithmetic<decltype(sim)> arr;
    auto& r = sim.getQubitRegister();

    SECTION("OLD_TEST"){
        unsigned int r1_min = 0, r1_max=(num_qubits/2)-1, r2_min = r1_max+1, r2_max = num_qubits-1;
        CAPTURE(r1_min, r1_max, r2_min, r2_max );

        for(std::size_t pattern = 0; pattern < 1<<(num_qubits/2); pattern ++){
            unsigned int bitmask = 0x1;
            unsigned int a = 0;
            sim.initRegister();
            for (unsigned int i=0; i <= r1_max -1; i++){
                sim.applyGateX(i);
                a += (unsigned int) pow(2,i);
            }
            for (unsigned int j = r2_min; j <= r2_max; j++){
                if ( (pattern & bitmask) > 0 ){
                    sim.applyGateX(j);
                }
                bitmask <<=1;
            }
            CAPTURE(pattern, a, bitmask);
            arr.sub_reg(sim, r1_min, r1_max, r2_min, r2_max);
            std::string result="";
            CAPTURE(result);

            for (unsigned int j = r2_min; j <= r2_max; j++){
                result += std::to_string( r.GetProbability( j )).at(0);
            }
            CAPTURE(result);

            std::reverse(result.begin(), result.end());
            std::cout << "Sub = " << std::bitset<4>(a) << "-" << std::bitset<4>(pattern) << "=> Expected:=" << std::bitset<4>(a-pattern) << " : Actual:=" << result << std::endl;
            CAPTURE(r);
        }
    }
}

References ncu_opt_tester::num_qubits, ncu_opt_tester::sim, and QNLP::Arithmetic< SimulatorType >::sub_reg().

Here is the call graph for this function:

TEST_CASE() [2/2]

TEST_CASE	(	"Arithmetic summation"	,
		""	[arithmetic]
	)

Test Arithmetic: Summation.

Definition at line 72 of file test_arithmetic.cpp.

                                                {
    std::size_t min_idx=0, max_idx=3;
    std::size_t num_qubits = max_idx - min_idx +1;
    IntelSimulator sim(num_qubits);
    Arithmetic<decltype(sim)> arr;
    auto& r = sim.getQubitRegister();

    SECTION("OLD_TEST","[arithmetic]"){
        unsigned int r1_min = 0, r1_max=(num_qubits/2)-1, r2_min = r1_max+1, r2_max = num_qubits-1;
        for(int pattern = 0; pattern < 1<<(num_qubits/2); pattern ++){
            unsigned int bitmask = 0x1;
            unsigned int a = 0;
            sim.initRegister();
            for (unsigned int i=0; i <= r1_max -1; i++){
                sim.applyGateX(i);
                a += (unsigned int) pow(2,i);
            }
            for (unsigned int j = r2_min; j <= r2_max; j++){
                if ( (pattern & bitmask) > 0 ){
                    sim.applyGateX(j);
                }
                bitmask <<=1;
            }
            arr.sum_reg(sim, r1_min, r1_max, r2_min, r2_max);
            std::string result="";

            for (unsigned int j = r2_min; j <= r2_max; j++){
                result += std::to_string( r.GetProbability( j )).at(0);
            }
            std::reverse(result.begin(), result.end());
            std::cout << "Sub = " << std::bitset<4>(a) << "-" << std::bitset<4>(pattern) << "=> Expected:=" << std::bitset<4>(a-pattern) << " : Actual:=" << result << std::endl;
            CAPTURE(r);
        }
    }
}

References ncu_opt_tester::num_qubits, ncu_opt_tester::sim, and QNLP::Arithmetic< SimulatorType >::sum_reg().

Here is the call graph for this function:
